40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White

ब्रांड नाम: SZSSTH
मॉडल संख्या: एसजेडएसएसटीएच-40ए
कीमत: CN¥921.73/pieces 1-49 pieces
आपूर्ति करने की क्षमता: प्रति माह 5000 टुकड़ा/टुकड़े
विस्तृत जानकारी
उत्पत्ति के प्लेस:
ग्वांगडोंग, चीन
प्रकार:
एमपीपीटी
आवेदन:
चार्जर नियंत्रक, सौर प्रणाली नियंत्रक
काम का समय (एच):
24 घंटों
अधिकतम पीवी शक्ति:
5760w
मैक्स पीवी वोल्टेज:
230V
प्रोडक्ट का नाम:
12V से 96V एमपीपीटी सौर चार्ज नियंत्रक
प्रभार विधा:
एमपीपीटी अधिकतम पावर प्वाइंट ट्रैकिंग
प्रदर्शन:
एलसीडी स्क्रीन प्रदर्शन
वर्तमान मूल्यांकित:
40 ए
तंत्र वोल्टेज:
12v/24v/36v/48v/96v स्वचालित पहचान
संचार:
आरएस485 ऑनलाइन
विशेषता:
उच्च दक्षता चार्जिंग विधि
बैटरी प्रकार:
लेड-एसिड/लिथियम/LiFePO4 बैटरी
आयाम:
202x215x100मिमी
रंग:
सफ़ेद
प्रमाणपत्र:
सीटी
गारंटी:
12 महीने
पत्तन:
शेन्ज़ेन, गुआंगज़ौ, चीन में अन्य बंदरगाह
पैकेजिंग विवरण:
40A MPPT वोल्टेज रेंज सौर चार्ज नियंत्रक
पैकिंग: बॉक्स
पीसीएस/सीटीएन: 8 पीसीएस
इकाई वजन:
प्रमुखता देना:

40A MPPT solar charge controller

,

12V to 96V solar controller

,

5760W max PV power controller

उत्पाद का वर्णन
Product Description
China Manufacturer 40A solar charger controller automatically adjust 12V to 96v mppt solar charge controller

Product Feature :

  • Automatically adjust battery charging and discharging, battery voltage from 12V to 96V,can use for Lead-acid/Lithium/LiFePO4 Battery
  • Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery .
  • With automatic protection of overcharge, over discharge, overload and short circuit;
  • RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;

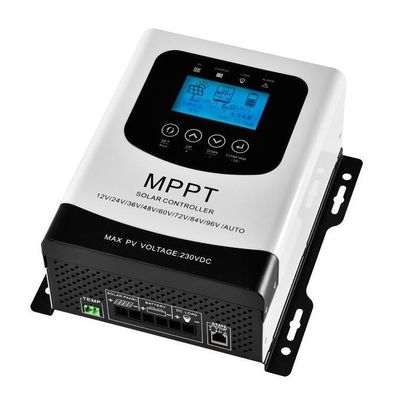

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White 0

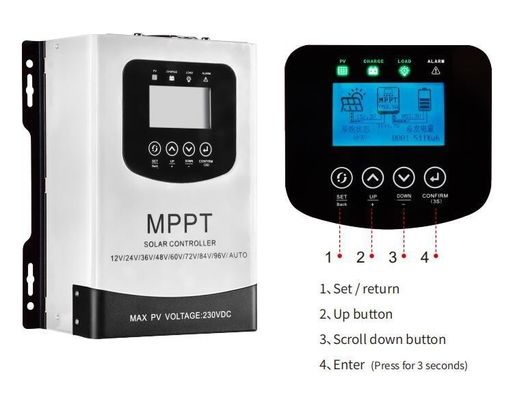

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White 1

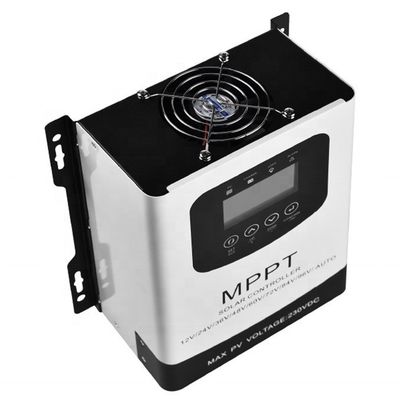

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White 2
Specification
Charging Mode MPPT automatic maximum power tracking
PV maximum open circuit input voltage 0-230V
DC continuous output 35A
Protection level IP 21
The charging current is adjustable 0-40A
Altitude 0-3000M
Battery Type Lead Acid,Gel LifePo 4,Li-ion,User
Product size 218x265x100mm
Product Paramenters

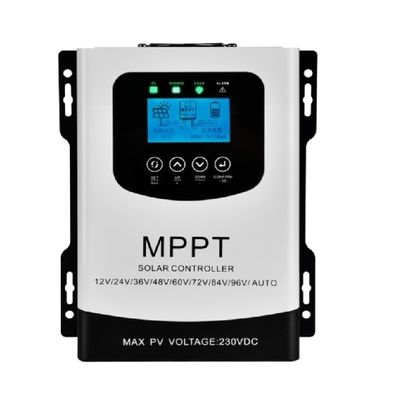

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White 3
Packing & Delivery

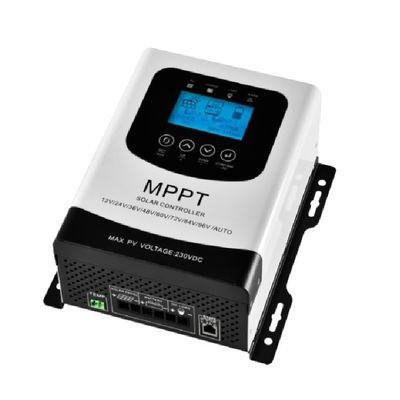

40A Solar Charger Controller Automatically Adjusts 12V to 96V MPPT Solar Charge Controller for Max PV Power 5760W White 4
