| ब्रांड नाम: | SZSSTH |
| मॉडल संख्या: | एसएसटीएच-आरएस स्प्लिट चरण |
| एमओक्यू: | 1 |
| कीमत: | USD$226-426/pieces 1-99 pieces |
| Model | RS-2000 | RS-3000 | RS-4000 | RS-5000 | RS-6000 | |
|---|---|---|---|---|---|---|
| Battery | Rated power | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Charge Current | 30A(default) | |||||
| Battery Type | can be set | |||||
| Input | Voitage (HOT1-HOT2) | 170~275VAC | ||||
| Frequency | 45-65Hz | |||||
| Output | Voitage/Power (HOT1-HOT2) | 220VAC/ 2KW |
220VAC/ 3KW |
220VAC/ 4KW |
220VAC/ 5KW |
220VAC/ 6KW |
| Voltage/Power (N-HOT1) | 110VAC/ 1KW |
110VAC/ 1.5KW |
110VAC/ 2KW |
110VAC/ 2.5KW |
110VAC/ 3KW |
|
| Voltage/Power (N-HOT2) | 110VAC/ 1KW |
110VAC/ 1.5KW |
110VAC/ 2KW |
110VAC/ 2.5KW |
110VAC/ 3KW |
|
| Frequency | 50/60Hz+1%(Inverter mode) | |||||
| Output Wave | Pure Sine Wave | |||||
| Conversion Time | <10ms(typical load) | |||||
| Efficiency | >85%(80% Resistance load) | |||||
| Overioad | 110-120%/60s;120-130%110s130~150%/2s;>150%1500ms | |||||
| Protection | Battery overvoltagel/low voltage,overload,short circuit protection,overtemperature protection,etc. | |||||
| Operating Ambient Temperature | 0~40°C | |||||
| Storage Ambient Temperature | －15~50°C | |||||
| Machine Size:L"W"H(mm) | 486*247*179 | 563*307*189 | ||||
| Package Size:L"W"H(mm) | 550*310*230 | 640*370*240 | ||||
| Net Weight/Gross Weight(KG) | 17/18 | 20/22 | 24/28 | 27/31 | 31/35 | |

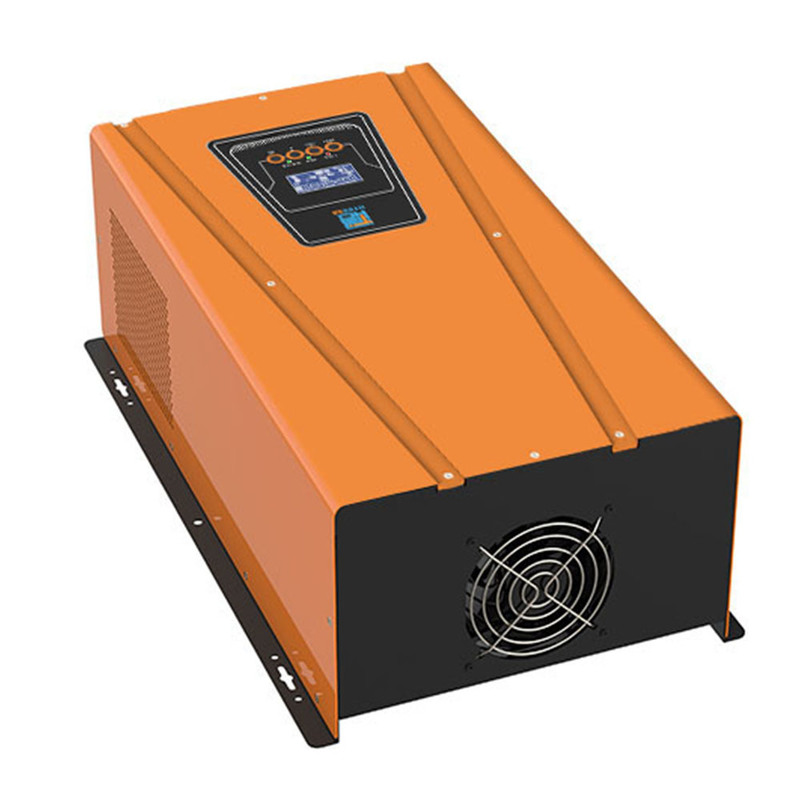

Advantages and Features:
RS series is a pure sine wave power frequency inverter that converts direct current into alternating current. The equipment is safe and efficient, energy saving and environmental protection, fully functional, easy to install, simple to operate, intelligent and friendly, etc.
DC-AC inverter module adopts full digital intelligent design and outputs pure sine wave. Suitable for household appliances, power tools, industrial equipment, electronic audio and video and other AC load.
This is the common application of inverters, it also includes the following equipment can constitute a complete operating system • Generator or Utility. • PV modules Inverter can be applied to most home and office appliances, such as refrigerators, air conditioners, notebooks; Consult us for additional system architectures based on your requirements
